Tri-Color and Anchor Light AMAZÔNIA ECO Plus 4 IN 1 Featured

Plus Version: NEW Installation system, Double Waterproof Seal and IP68 Connector Option

4 IN 1: Tri-color Navigation light, Anchor light, Switches on-off automatically: at dawn at night and during storms or fog and Bi-Dimensional VLE System.

OPTOLAMP New line
The assembly of the electronics is similar to that used in the Military and Aerospace area: it is absolutely reliable.

GLOBAL WARRANTY: 3 YEARS

NEW "AMAZÔNIA Eco Plus"
VLE System
now with two functions: 1-High Light Emission up to 4.4NM for Aerial Rescue. 2-In the Navigation Light function, the VLE System will adjust its intensity accordingly to illuminate only the Wind indicator on the top.
LS: New high sensitivity light sensor.
Sector 4: The optical system upgrade for the traditional bi-dimensional OPTOLAMP® lens, enables precise focusing.

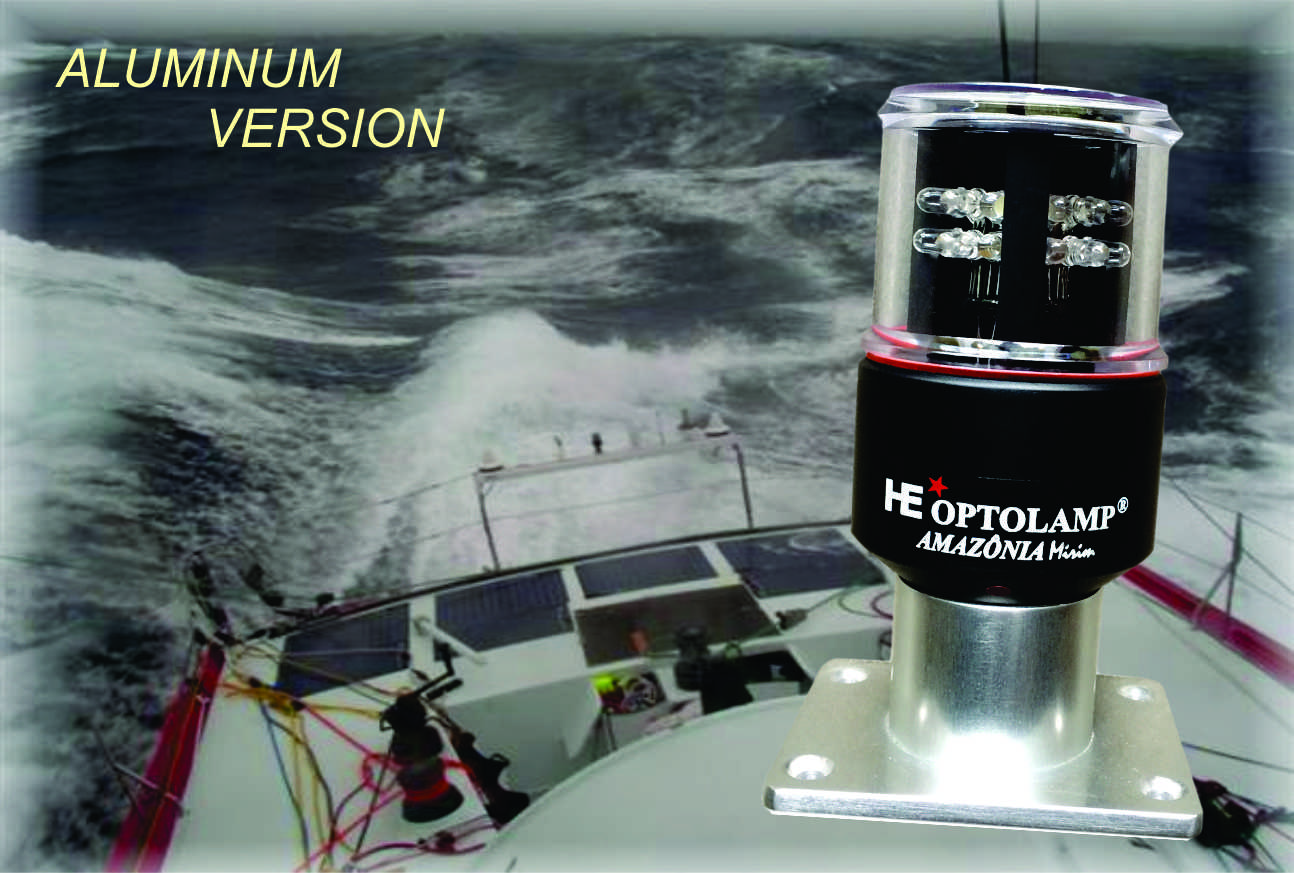

OPTION: Amazônia 5 Aluminum: to replace previous Optolamp models. Simple installation without modifications (aluminum base).

RFI/EMI: absolutely FREE.

 TDPS Pro System - safe signalization: even if there is a defect in the system, the safety of the boat will always be maintained (it TDPS System acts as a second lamp in the event of a system failure).

VLE and TDPS Pro Systems are an exclusive Optolamp characteristic.

Ultra Low Consumtion – UBC® - First Integrated LED Light in the market.
ABSOLUTE SAFE SIGNALIZATION: MAXIMUM LIGHT INTENSITY WITH DISCHARGED BATTERIES. DRAWS 18 TIMES LESS ENERGY.

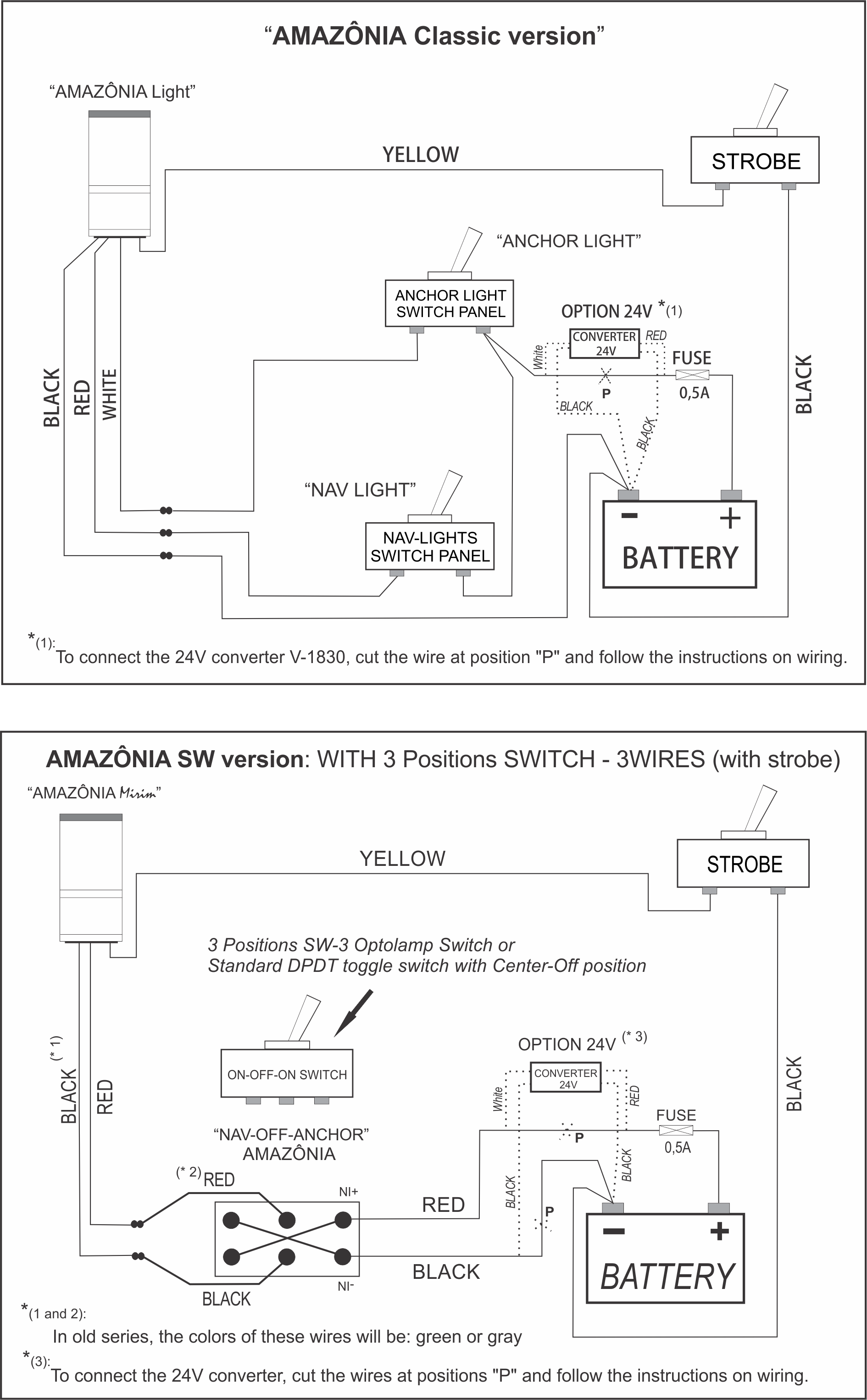

Amazônia model Versions:

Amazônia Eco Plus "Classic" Version: 3 wires are needed for: Tricolor and Anchor Light. Standard Installation with the original boat panel switches.

Amazônia Eco PLus "SW" Version: Only 2 wires for: Tricolor and Anchor Light. This version must use a mode selector: 3 positions switch ON-OFF-ON - You can use the Optolamp SW3 Accessory with wires and toggle protection (Not provided), or any 3 positions conventional switch: ON-OFF-ON..


Description:

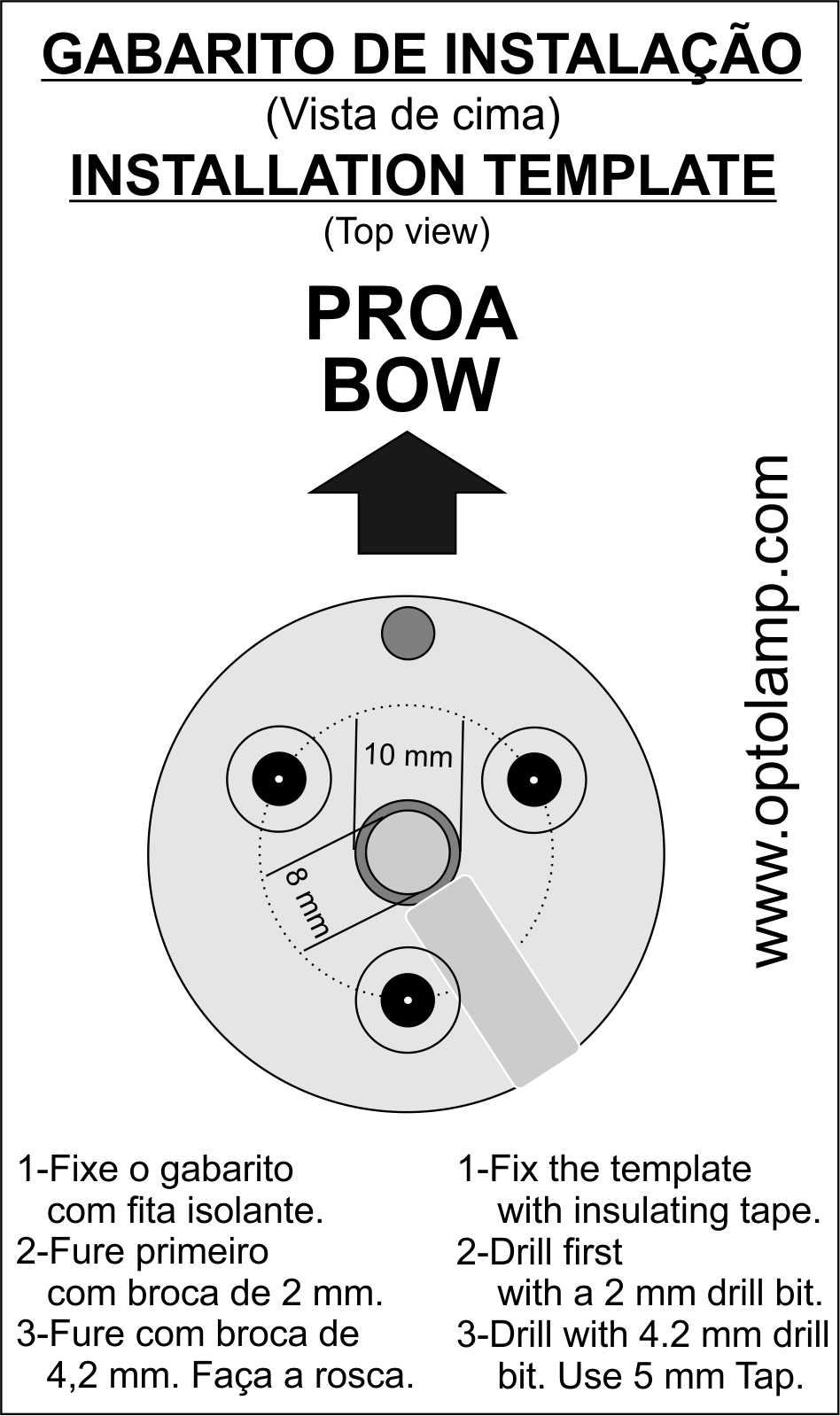

Simple Installation: Base in Delrin block.
Waterproof IP 67 or IP68, connector (Optional Optolamp® Accessory: C3 or C4 -Not provided).
OPTION: Amazônia Eco Aluminum: to replace previous Optolamp models. Simple installation without modifications (aluminum base).
It can work up to 40 nights with a 12V/75A battery without recharge it.
Consumes 18 times less energy.
Show the Top Wind Indicator.
Total resistance against mechanic stress.
Warranty HE: 3 years.
Patented.

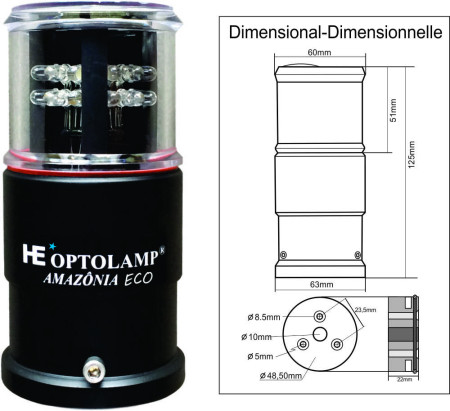

Specifications:

Weight: 225 gr
Height: 125 mm.
Diameter: 60 mm.
Base: Delrin block, very fast installation.
Power source: 10,6V to 14,4V.
Option 24V: V1830 Optolamp Converter -Not provided.
Consumption UBC®: 0,126A to 0,155A.
Horizontal range: minimum 2,2 NM.
In accordance with the COLREG Norms.
Vertical range VLE system: up to 4,4 NM.
Switches on-off automatically (Anchor Light): at dawn at night and during storms or fog.
LED life: minimum 50000 hs.

Accessories:

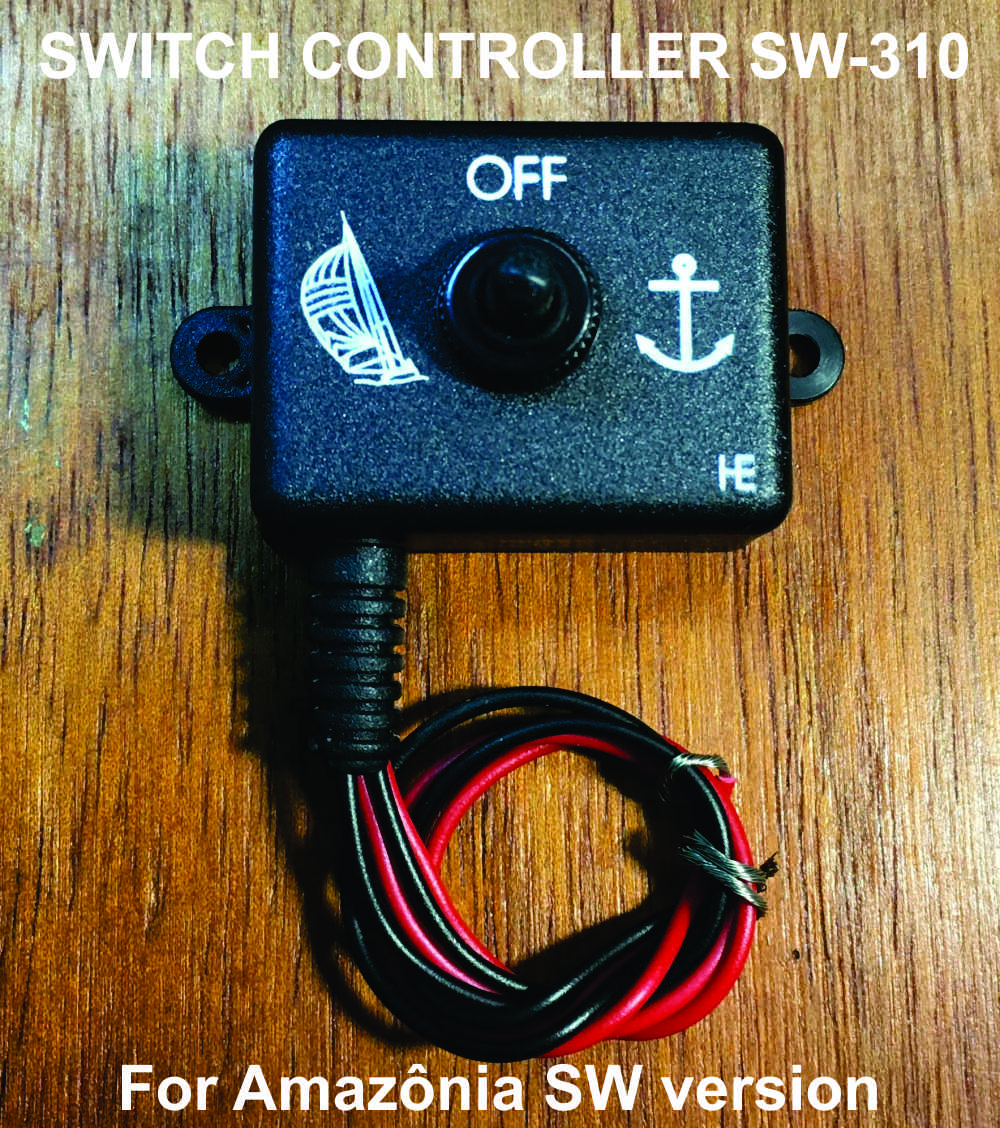

-Optolamp® Box Switch SW-310 -Not provided (for SW version).

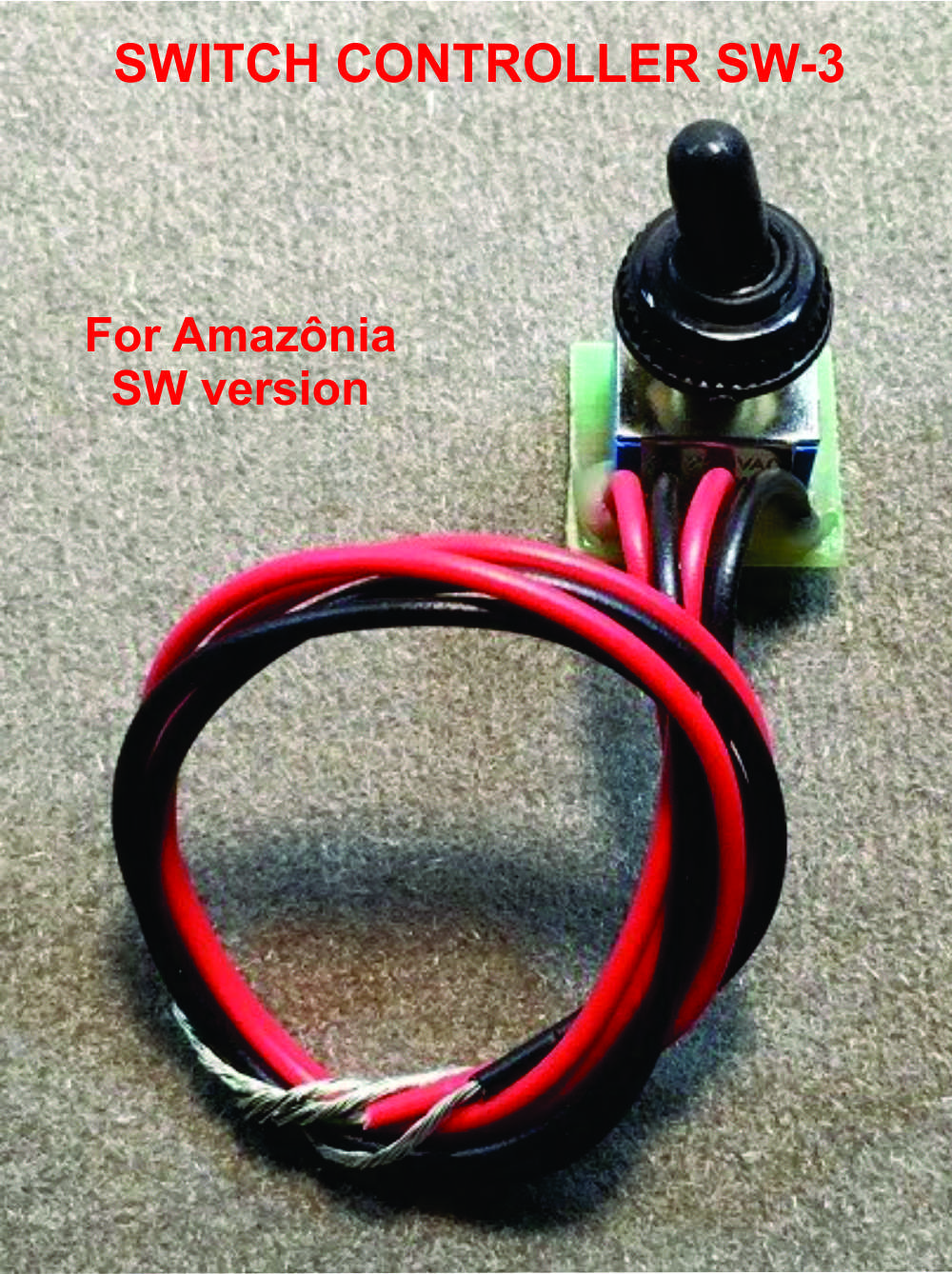

-Optolamp® SW3 Accessory: for Amazônia Eco SW version -Not provided.

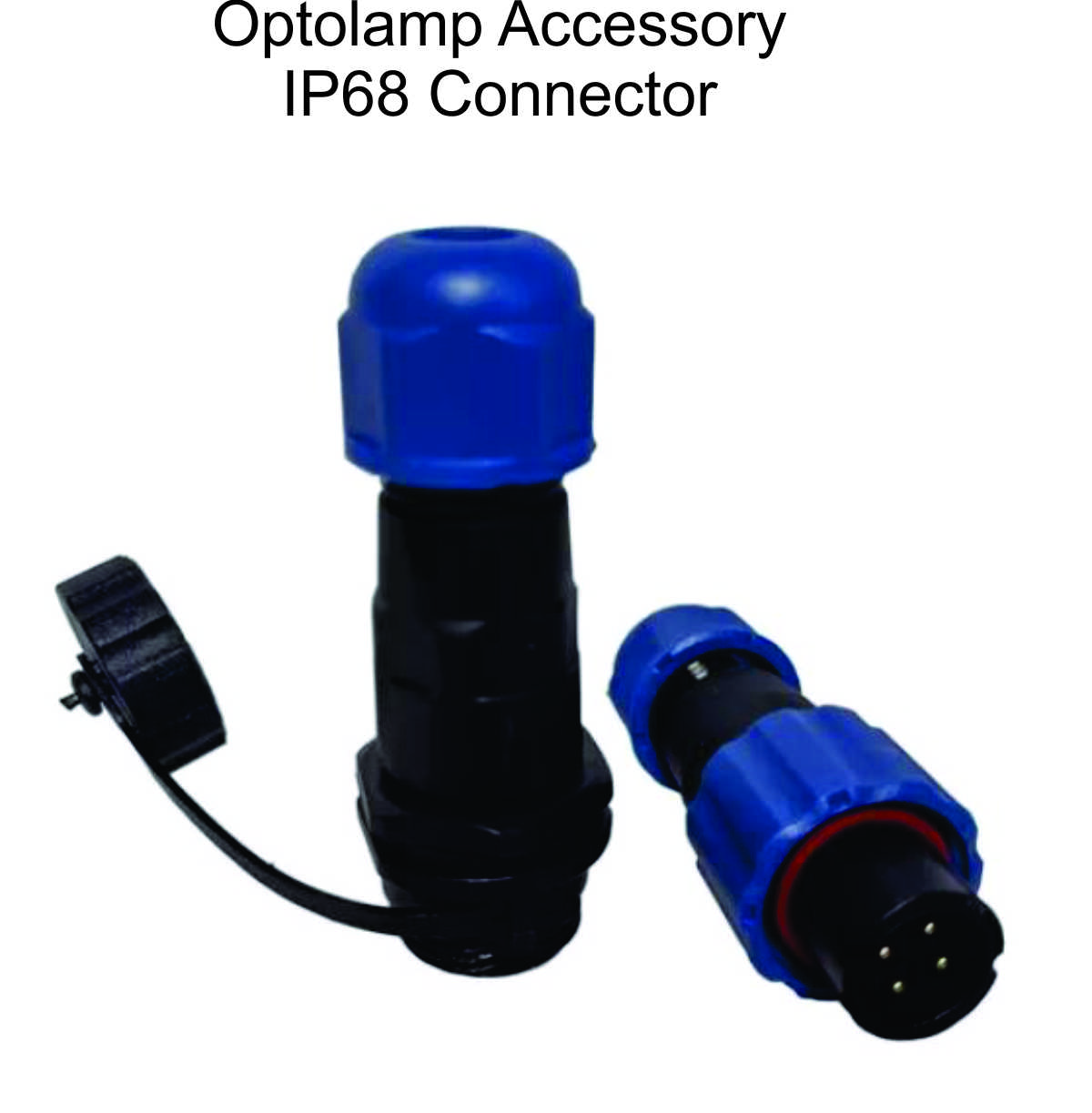

-Waterproof (IP 67 or IP68), connector C3 or C4 Optolamp® Accessory -Not provided.
-New Electronic 24V Converter V1830 -Not provided.

OPTOLAMP® signalization products do not cause RFI-EMI interference on the boat equipment.

Optolamp and the Ecology

Some materials used in different manufacture parts of our products are originally in the market, our ecological policy is to avoid greater consumption of raw material, energy and matrix tools.
