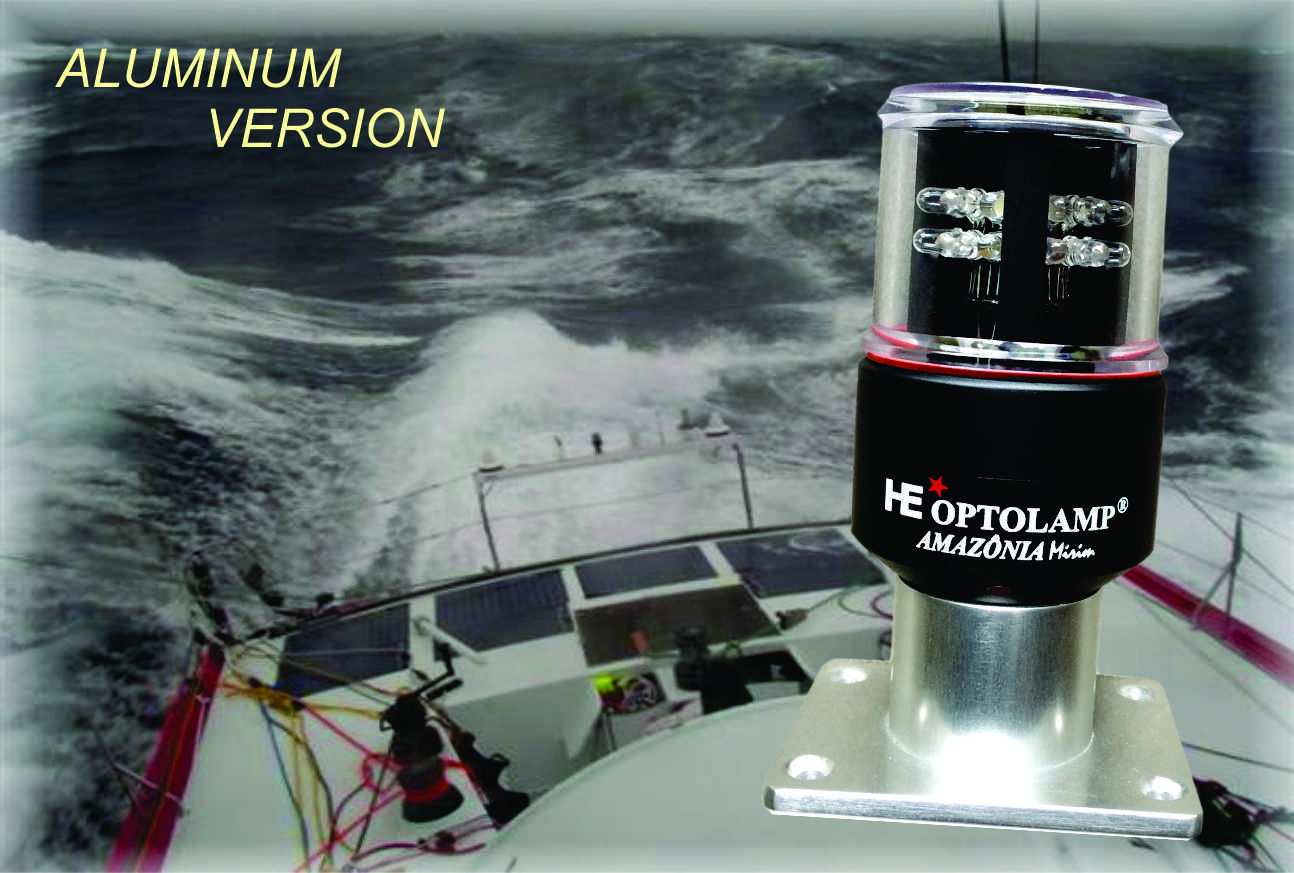

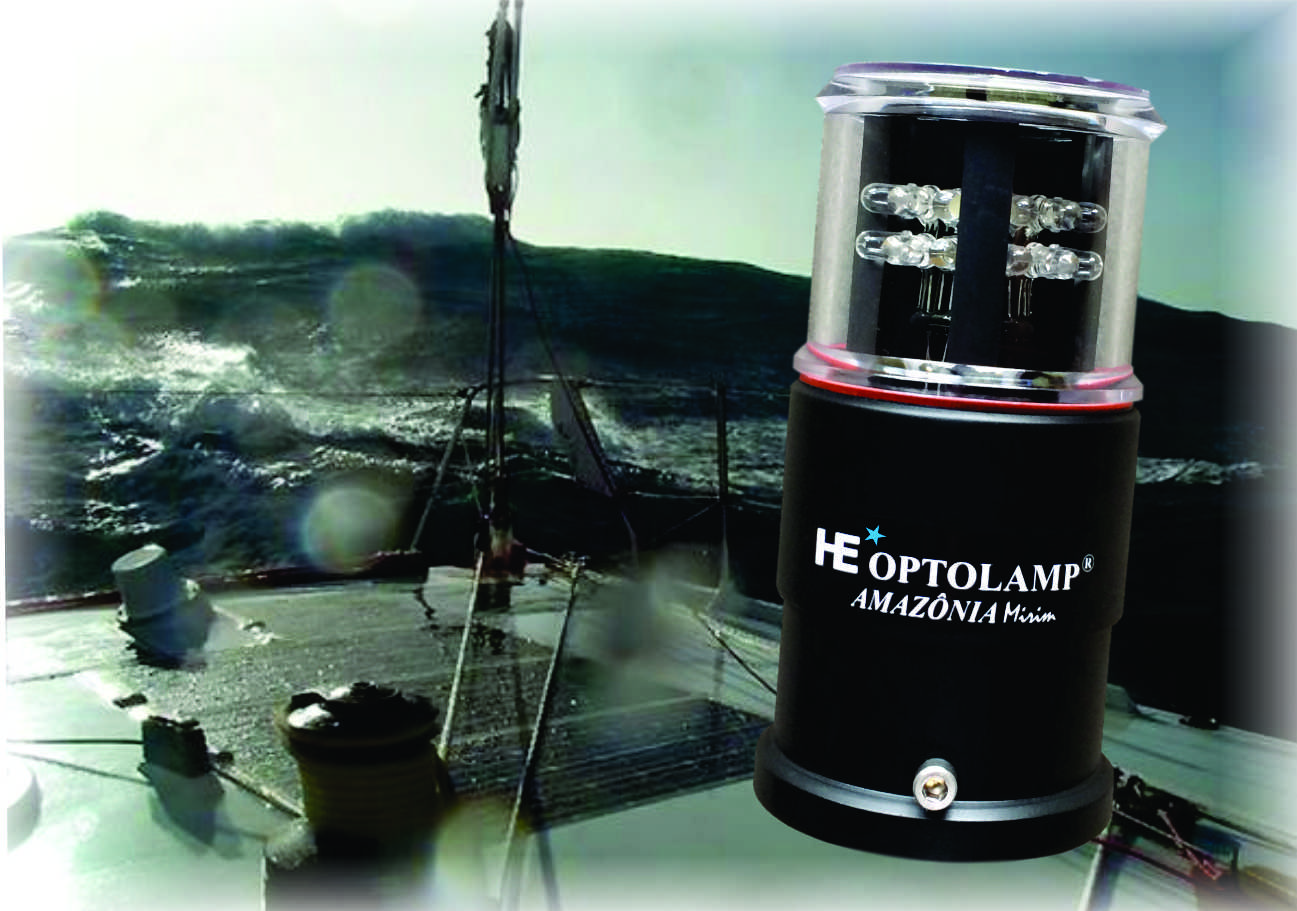

Tri-Color Anchor Strobe Light “AMAZÔNIA Mirim 4 Plus” Compact 5 in 1 Featured

5 IN 1: Tri-color Navigation light, Anchor light, Emergency Strobe, Switches on-off automatically: at dawn at night and during storms or fog and Bi-Dimensional VLE System.

New: On the new Model "Amazônia Mirim 4 Plus", the electronic system recognizes when the navigation light is used and activate the vertical emergency light emission with an appropriate intensity to illuminate exclusively the wind direction indicator. RFI/EMI: absolutely FREE.

TDPS Pro System - safe signalization: even if there is a defect in the system, the safety of the boat will always be maintained (it TDPS System acts as a second lamp in the event of a system failure). Note: If there is a fault in other lamps of the market, they will simply shut down completely leaving the boat without any signaling.
VLE System -Vertical Light Emitting. Vertical Light Emission up to 4.0NM for Aerial Rescue.
Ultra Low Consumtion – UBC® - First Integrated LED Light in the market.
ABSOLUTE SAFE SIGNALIZATION: MAXIMUM LIGHT INTENSITY WITH DISCHARGED BATTERIES. DRAWS 18 TIMES LESS ENERGY.

Amazônia model Versions:

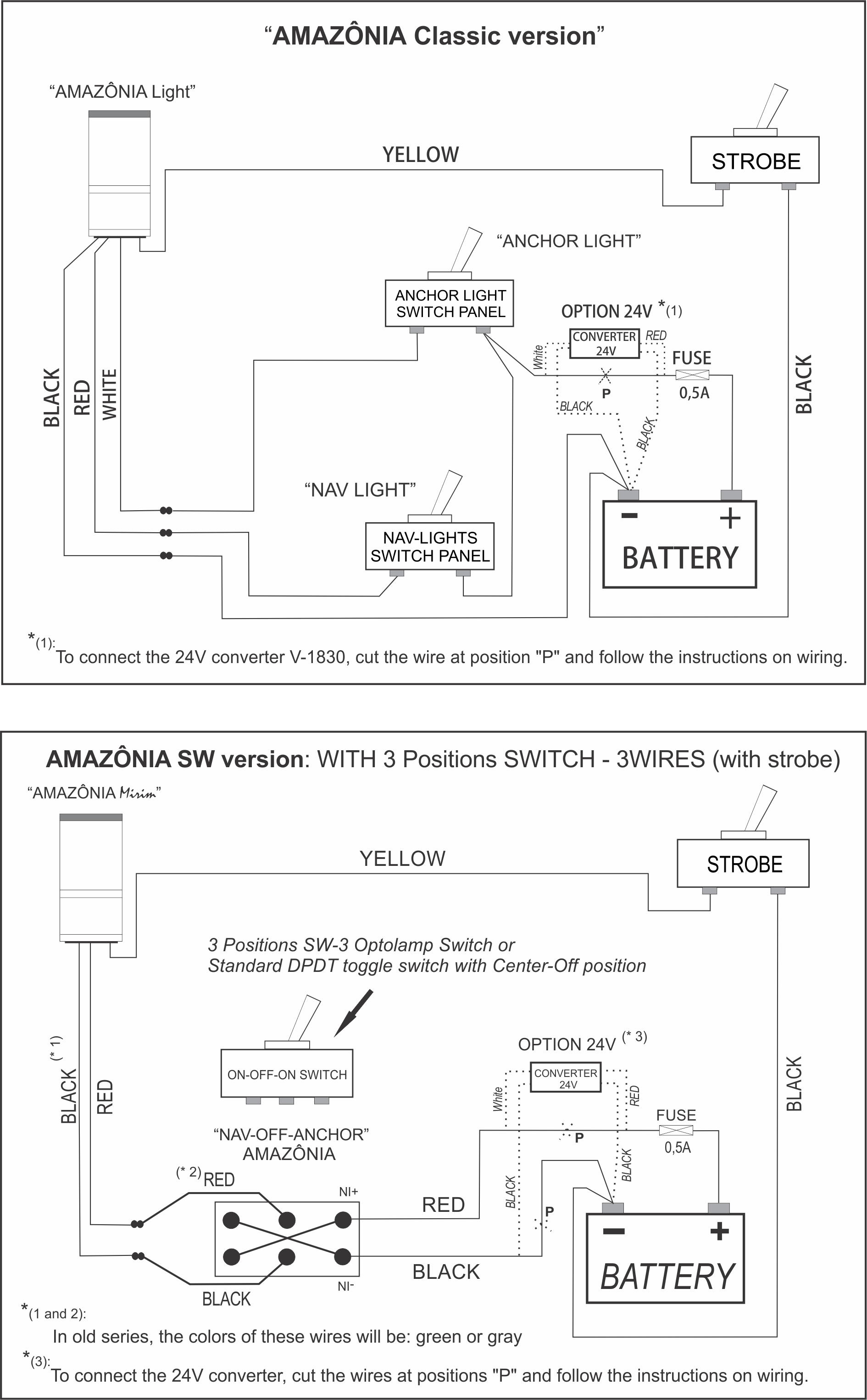

Amazônia Mirim 4 Plus "Classic" Version: 4 wires are needed for: Tricolor, Anchor and Strobe Light. Standard Installation with the original boat panel switches.

Amazônia Mirim 4 Plus "SW" Version: only 2 wires for: Tricolor and Anchor Light; or 3 wires to add Strobe Light function. This version use a mode selector: 3 positions switch On-Off-On - Optolamp SW3 Accessory (Not provided).



Description:

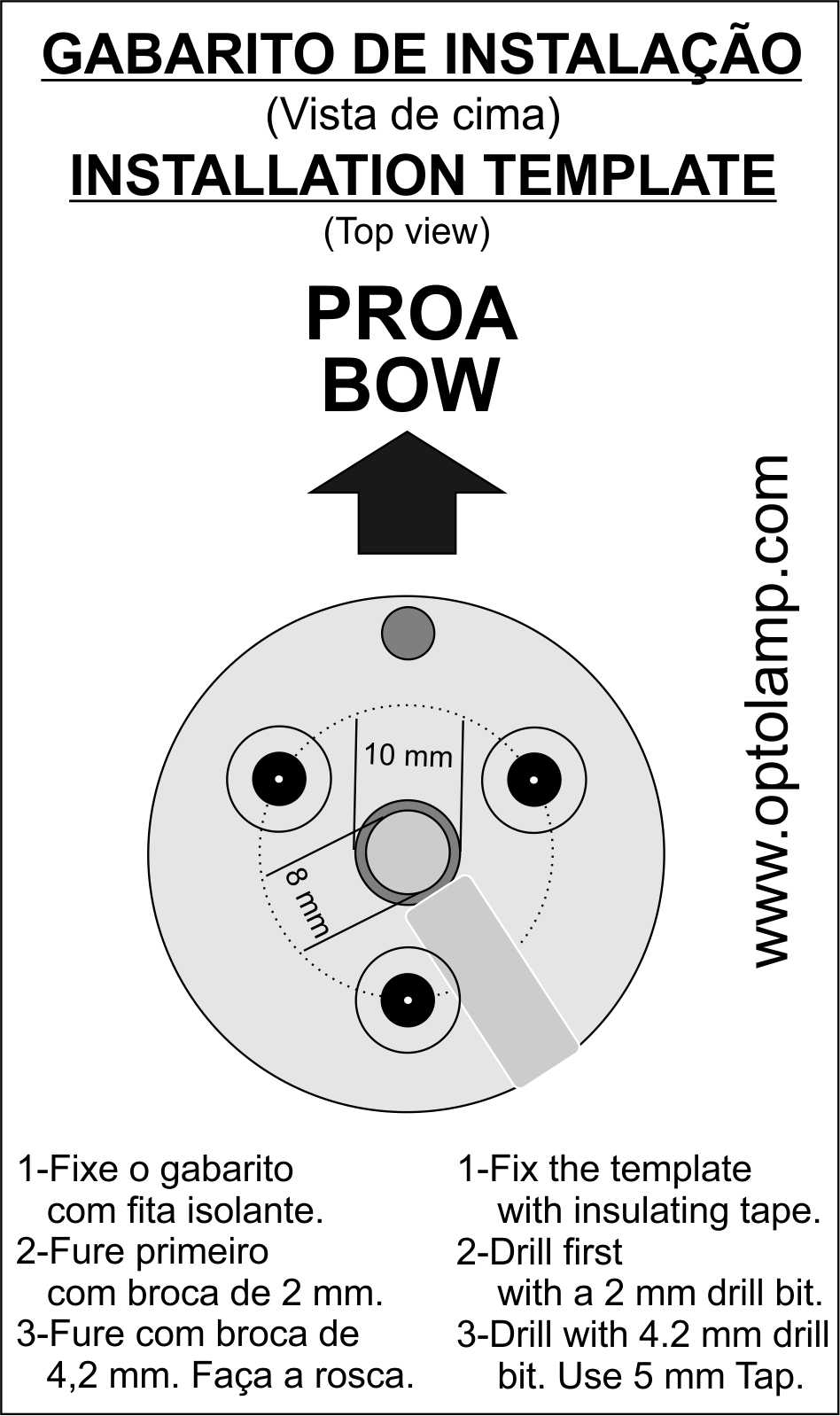

Simple Installation: Base in Delrin block. Waterproof (IP 67), connector (Optional Optolamp® Accessory: C4 -Not provided).

It can work 40 nights with a 12V/75A battery without recharge it.
Consumes 18 times less energy.
Show the Top Wind Indicator.
Total resistance against mechanic stress.
Warranty HE: 3 years.
Patented.

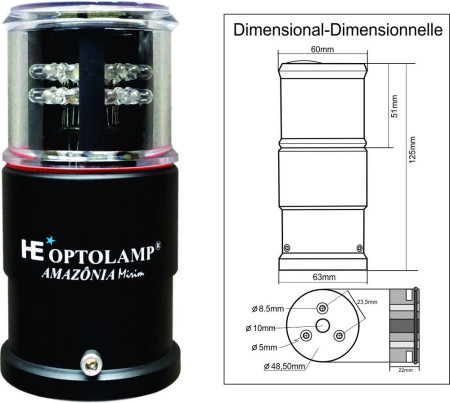

Specifications:

Weight: 225 gr
Height: 125 mm.
Diameter: 60 mm.
Base: Delrin block, very fast installation.
Power source: 10,6V to 14,4V.
Option 24V: V1830 Optolamp Converter -Not provided.
Consumption UBC®: 0,126A to 0,155A.
Horizontal range: minimum 2,0 NM.
In accordance with the COLREG Norms.
Vertical range VLE system: up to 4,0 NM.
Switches on-off automatically: at dawn at night and during storms or fog.
LED life: minimum 50000 hs.

Accessories:

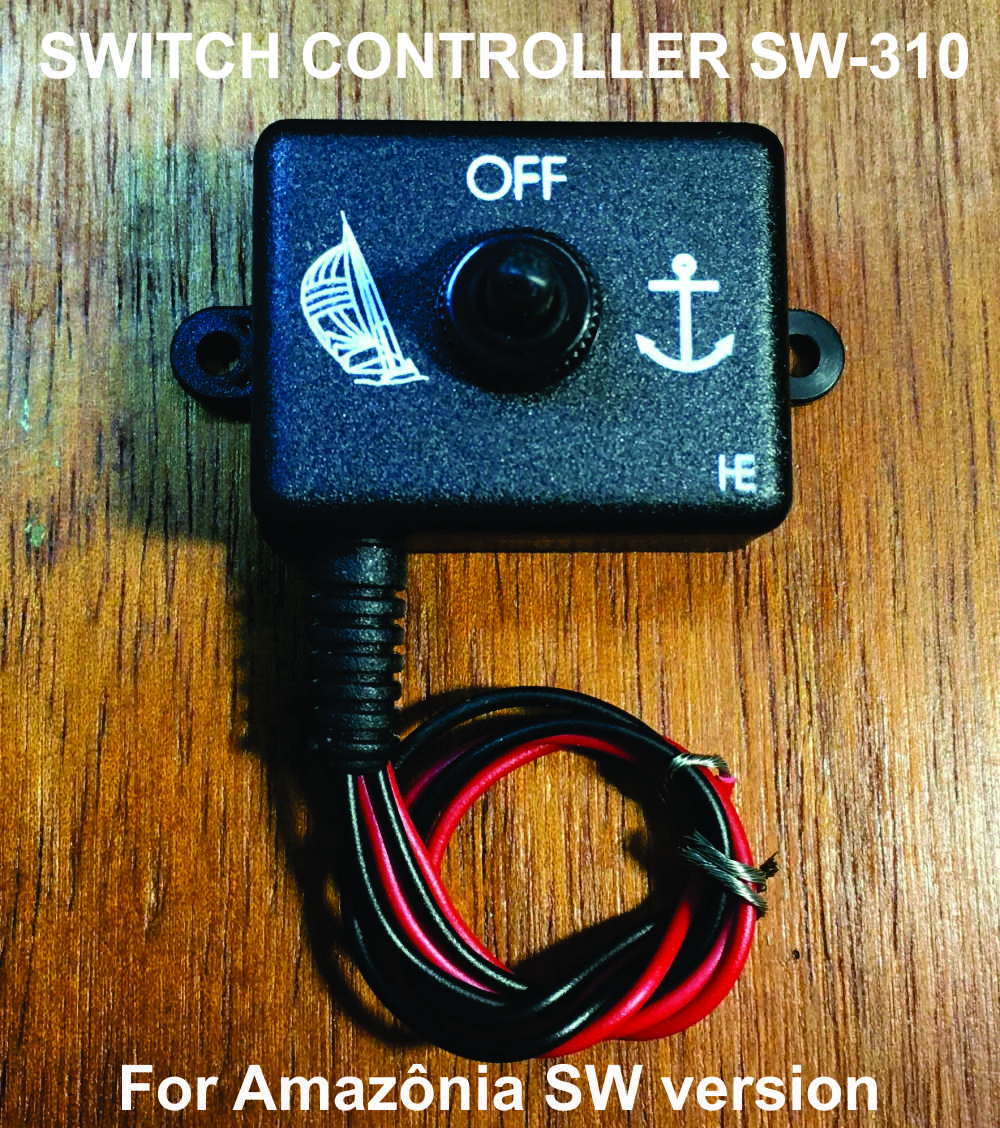

-Optolamp® Box Switch S-310 -Not provided.

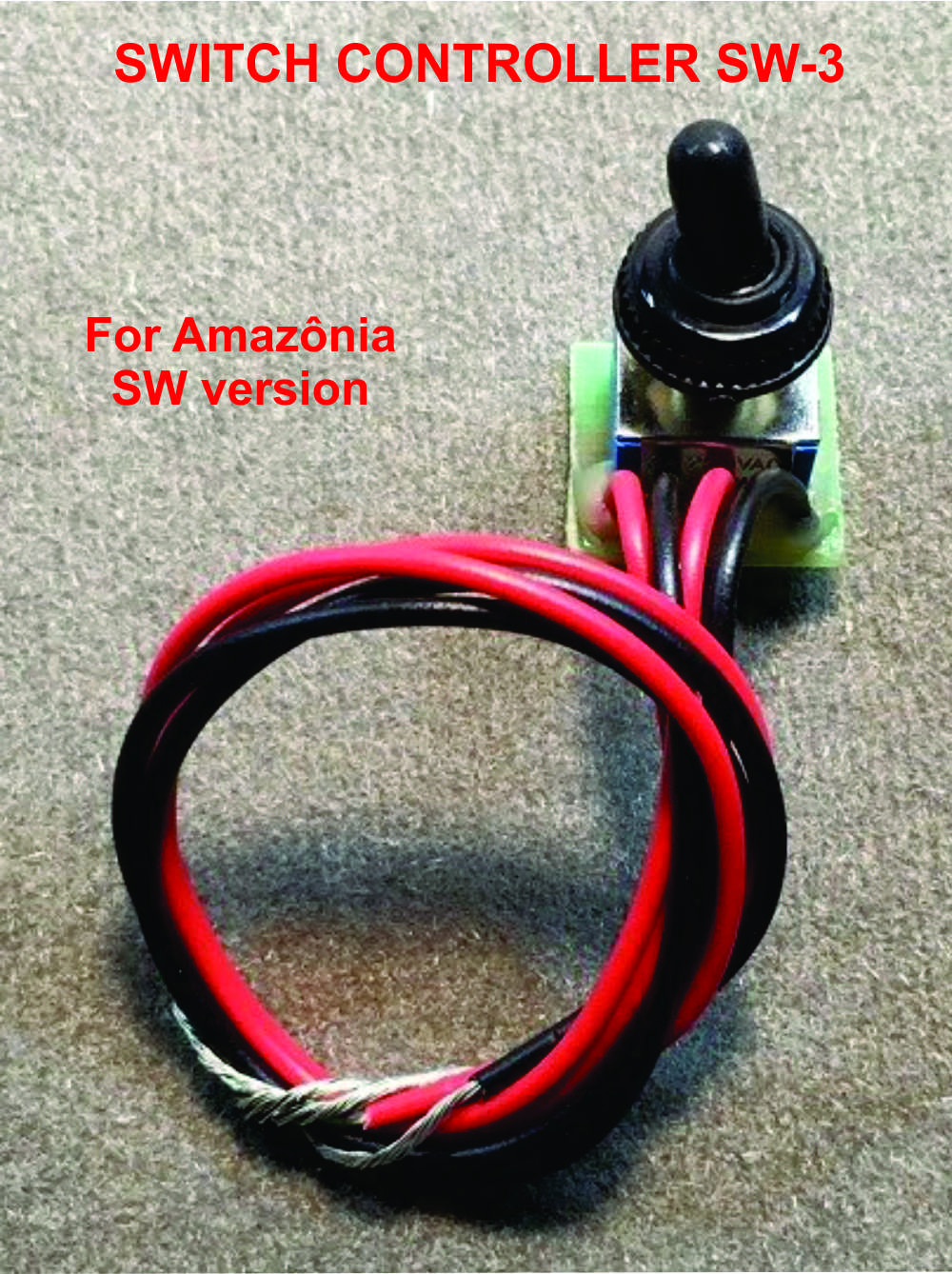

-Optolamp® SW3 Accessory: For Amazônia Mirim 4 > SW version -Not provided.

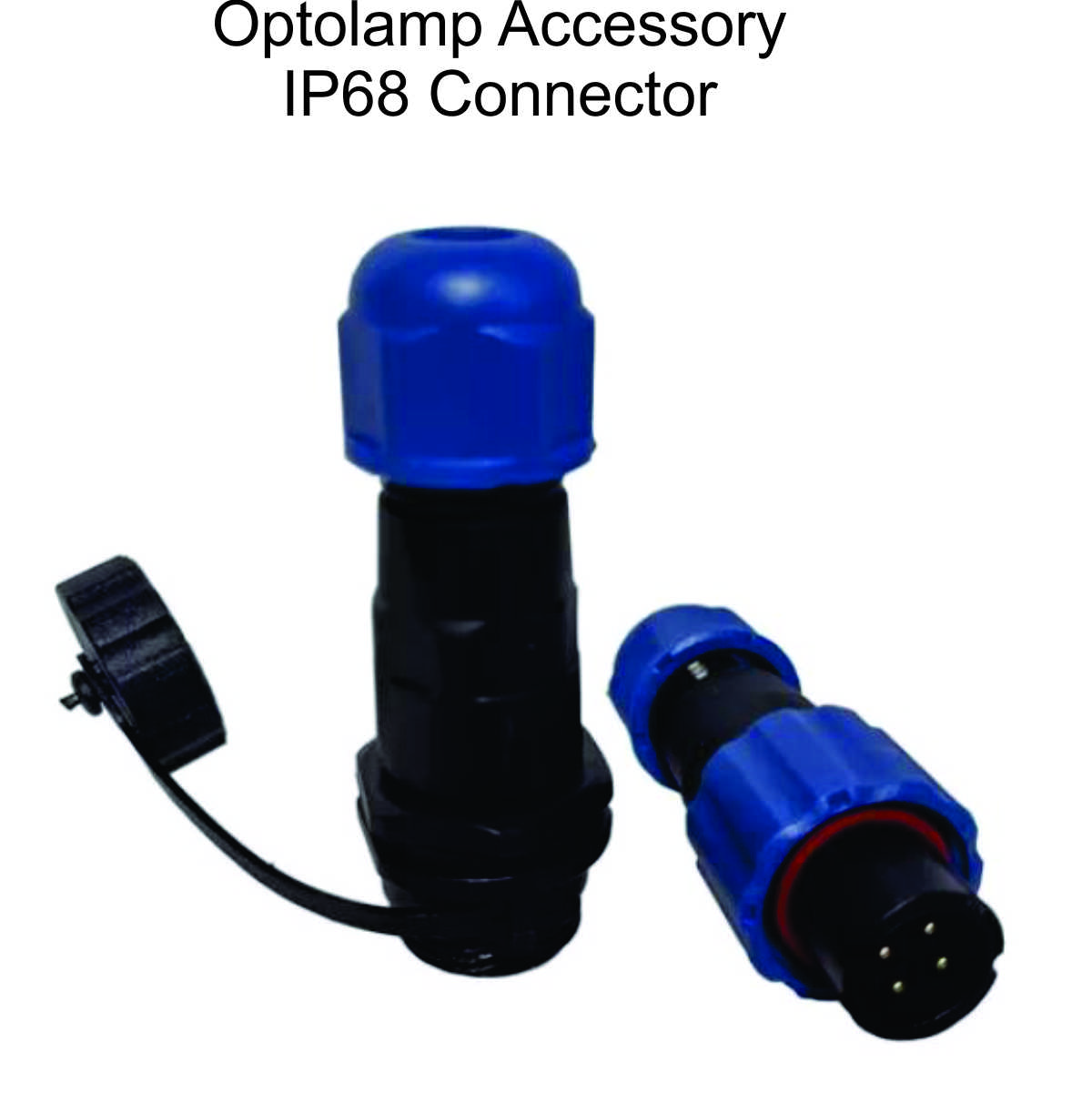

-Waterproof (IP 67), connector C4 Optolamp® Accessory -Not provided.
-New Electronic 24V Converter V1830 -Not provided.

OPTOLAMP® signalization products do not cause RFI-EMI interference on the boat equipment.

Optolamp and the Ecology

Some materials used in different manufacture parts of our products are originally in the market, our ecological policy is to avoid greater consumption of raw material, energy and matrix tools.
