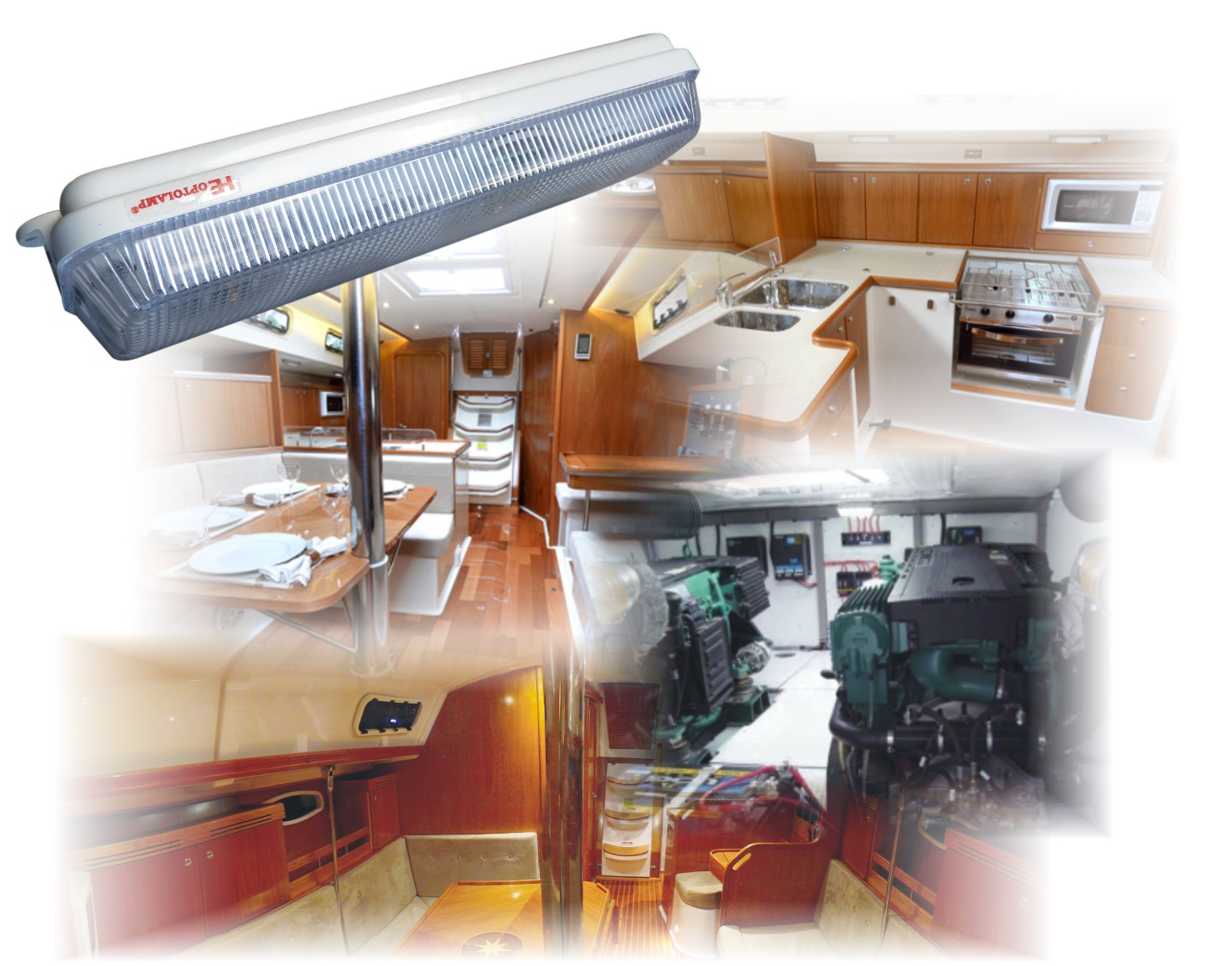

SURFACE MOUNT LED LIGHT “Angra 1030” and "Angra 1214"

For general illumination, working area, kitchen, engine room, etc..

Maximum light intensity with discharged batteries: absolute safe illumination.
Ultra Low Consumption - UBC® it can work: Mod. 1214,  27 nights and, Mod. 1030,  18 nights with a 12V/75A battery without recharge it.


Safe illumination: Mod. 1214, from 10,0V to 14,4V // Mod. 1030, from 10,0V to 30V .
RF (Radio frequency) interference free.
Keeps your cabin cool, cold–lamp.
Total resistance to mechanic stress.
Warranty HE: 2 years.


Weight: Mod. 1214, 215gr. // Mod. 1030, 190gr.
Dimensions: 80 x 40 x 209mm.
Power Source:
"Angra 1030": 10V to 30V.
"Angra 1214": 10,5V a 14,4V.
Consumption UBC®:
"Angra 1214": 0,230A.
"Angra 1030": 0,340A.
Light Source: High Intensity LED.
Luminous Flux:
"Angra 1214": 720lm.
"Angra 1030": 720lm.
Angle: 140º.
Temperature light: 4000K.
LED life: minimum 50000 hs.

Phone/Fax:+55-47-3369-4184 This email address is being protected from spambots. You need JavaScript enabled to view it.
  Patents and trademarks are property of HE Naval Systems
